Features

Product Description

(Click on the download specific document)

MODERN FUJI passenger elevator series, divided into room and equipment room, the perfect combination of practical and beautiful largely meet the needs of the passengers, mainly suitable for hotels, shopping malls, office buildings, etc.

Product Specification

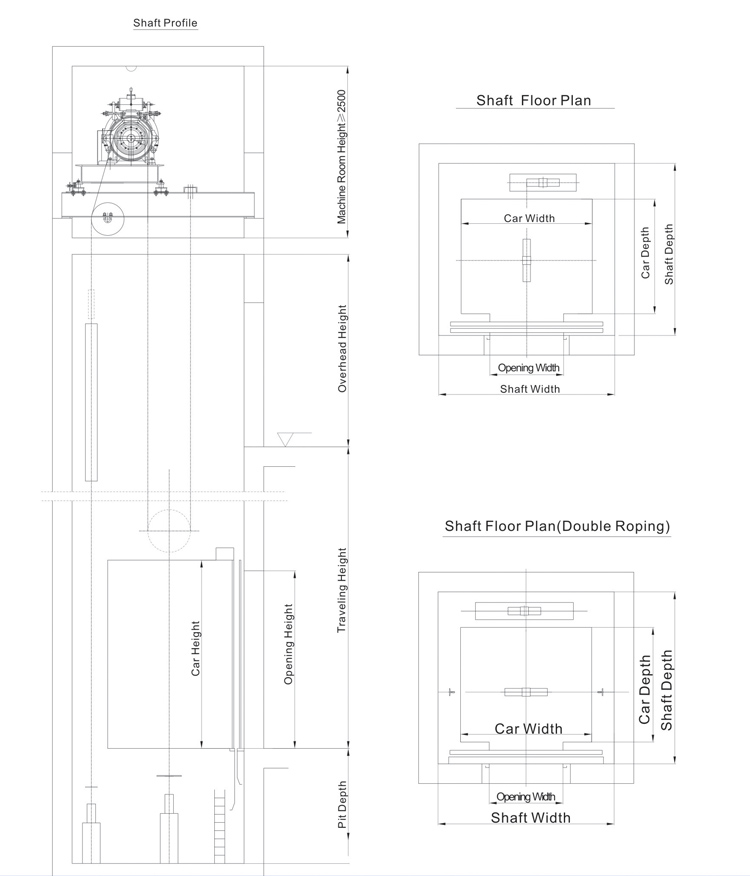

Passenger Elevator parameters (machine room)

Model	Load Kg	Speed m/s	Pers	Car Size (mm) CW×CD×HK	Opening Size(mm) PL×LH	Shaft Size(mm) SW×SD	Machine Room Size(mm) W×D	Overhead Hight H2 mm	Pit Depth H1 mm	Travelling Height H mm
MDFJ-P-MR450/1.0	450	1	6	1250×1000×2400	700×2100	1750×1650	1900×2100	4300	1500	50
MDFJ-P-MR450/1.5	450	1.5	6	1250×1000×2400	700×2100	1750×1650	1900×2100	4400	1500	75
MDFJ-P-MR450/1.75	450	1.75	6	1250×1000×2400	700×2100	1750×1650	1900×2100	4400	1500	85
MDFJ-P-MR630/1.0	630	1	8	1100×1400×2400	800×2100	1800×2100	1900×2100	4300	1500	50
MDFJ-P-MR630/1.5	630	1.5	8	1100×1400×2400	800×2100	1800×2100	1900×2100	4400	1500	75
MDFJ-P-MR630/1.75	630	1.75	8	1100×1400×2400	800×2100	1800×2100	1900×2100	4400	1500	85
MDFJ-P-MR800/1.0	800	1	10	1350×1400×2400	800×2100	1900×2100	1900×2100	4300	1500	50
MDFJ-P-MR800/1.5	800	1.5	10	1350×1400×2400	800×2100	1900×2100	1900×2100	4400	1500	75
MDFJ-P-MR800/1.75	800	1.75	10	1350×1400×2400	800×2100	1900×2100	1900×2100	4400	1500	85
MDFJ-P-MR1000/1.0	1000	1	13	1600×1400×2400	900×2100	2150×2100	2150×2100	4300	1500	50
MDFJ-P-MR1000/1.5	1000	1.5	13	1600×1400×2400	900×2100	2150×2100	2150×2100	4400	1500	75
MDFJ-P-MR1000/1.75	1000	1.75	13	1600×1400×2400	900×2100	2150×2100	2150×2100	4400	1500	85
MDFJ-P-MR1000/2.0	1000	2	13	1600×1400×2400	900×2100	2150×2100	2150×3150	4600	1700	100
MDFJ-P-MR1000/2.5	1000	2.5	13	1600×1400×2400	900×2100	2150×2100	2150×3150	4800	1800	125
MDFJ-P-MR1250/1.0	1250	1	16	1950×1400×2400	1000×2100	2500×2100	2500×2100	4300	1500	50
MDFJ-P-MR1250/1.5	1250	1.5	16	1950×1400×2400	1000×2100	2500×2100	2500×2100	4400	1500	75
MDFJ-P-MR1250/1.75	1250	1.75	16	1950×1400×2400	1000×2100	2500×2100	2500×2100	4400	1500	85
MDFJ-P-MR1250/2.0	1250	2	16	1950×1400×2400	1000×2100	2500×2100	2500×3150	4600	1700	100
MDFJ-P-MR1250/2.5	1250	2.5	16	1950×1400×2400	1000×2100	2500×2100	2500×3150	4800	1800	125
MDFJ-P-MR1600/1.0	1600	1	21	1950×1700×2400	1100×2100	2800×2200	2800×2200	4400	1500	50
MDFJ-P-MR1600/1.5	1600	1.5	21	1950×1700×2400	1100×2100	2800×2200	2800×2200	4500	1600	75
MDFJ-P-MR1600/1.75	1600	1.75	21	1950×1700×2400	1100×2100	2800×2200	2800×2200	4500	1600	85
MDFJ-P-MR1600/2.0	1600	2	21	1950×1700×2400	1100×2100	2500×2450	2500×3500	4600	1700	100
MDFJ-P-MR1600/2.5	1600	2.5	21	1950×1700×2400	1100×2100	2500×2450	2500×3500	4800	1800	125

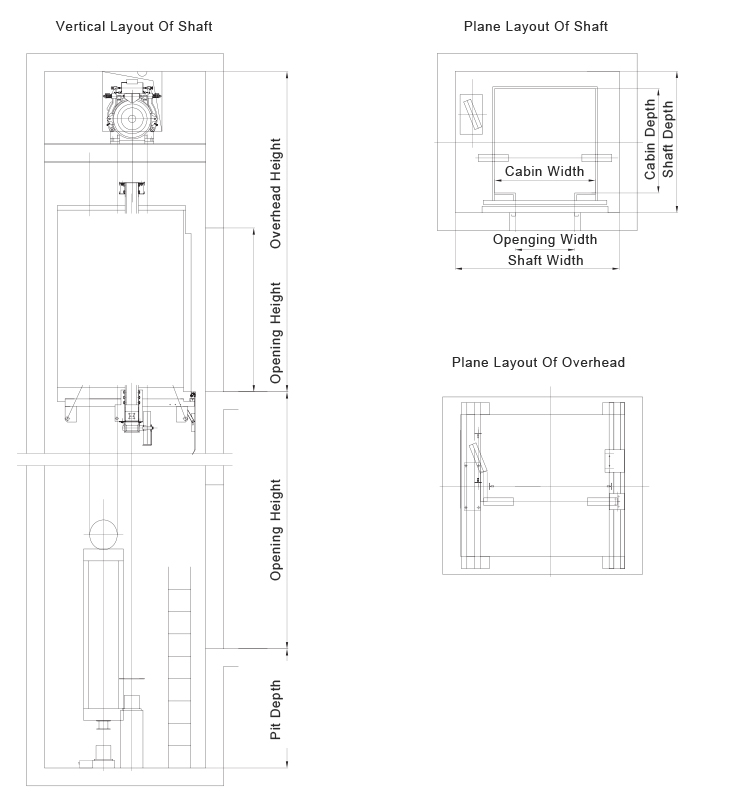

Passenger Elevator parameters (machine room less)

Model	Load Kg	Speed m/s	Pers	Car Size (mm) CW×CD×HK	Opening Size(mm) PL×LH	Shaft Size(mm) SW×SD	Overhead Hight H2 mm	Pit Depth H1 mm	Travelling Height H mm
MDFJ-P-MRL630/1.0	630	1	8	1250×1300×2400	800×2100	2100×1800	4300	1600	50
MDFJ-P-MRL630/1.5	630	1.5	8	1250×1300×2400	800×2100	2100×1800	4500	1600	75
MDFJ-P-MRL630/1.75	630	1.75	8	1250×1300×2400	800×2100	2100×1800	4600	1600	85
MDFJ-P-MRL800/1.0	800	1	10	1350×1400×2400	800×2100	2200×1900	4300	1600	50
MDFJ-P-MRL800/1.5	800	1.5	10	1350×1400×2400	800×2100	2200×1900	4500	1600	75
MDFJ-P-MRL800/1.75	800	1.75	10	1350×1400×2400	800×2100	2200×1900	4600	1600	85
MDFJ-P-MRL1000/1.0	1000	1	13	1600×1400×2400	900×2100	2450×1900	4300	1600	50
MDFJ-P-MRL1000/1.5	1000	1.5	13	1600×1400×2400	900×2100	2450×1900	4500	1600	75
MDFJ-P-MRL1000/1.75	1000	1.75	13	1600×1400×2400	900×2100	2450×1900	4600	1600	85
MDFJ-P-MRL1250/1.0	1250	1	16	1750×1600×2400	1000×2100	2700×2000	4450	1600	50
MDFJ-P-MRL1250/1.5	1250	1.5	16	1750×1600×2400	1000×2100	2700×2000	4650	1600	75
MDFJ-P-MRL1250/1.75	1250	1.75	16	1750×1600×2400	1000×2100	2700×2000	4750	1600	85
MDFJ-P-MRL1600/1.0	1600	1	21	1750×2000×2400	1000×2100	2700×2400	4500	1700	50
MDFJ-P-MRL1600/1.5	1600	1.5	21	1750×2000×2400	1000×2100	2700×2400	4850	1800	75
MDFJ-P-MRL1600/1.75	1600	1.75	21	1750×2000×2400	1000×2100	2700×2400	4900	1800	85
