Product Description
(Click on the download specific document)
MODERN FUJI cargo elevator series, the perfect combination of flexibility and security, demand for cargo, etc, durable, safe and reliable. Is mainly used in the large supermarkets, office buildings, factories, etc.
Product Specification
| Model | Load Kg |
Speed m/s |

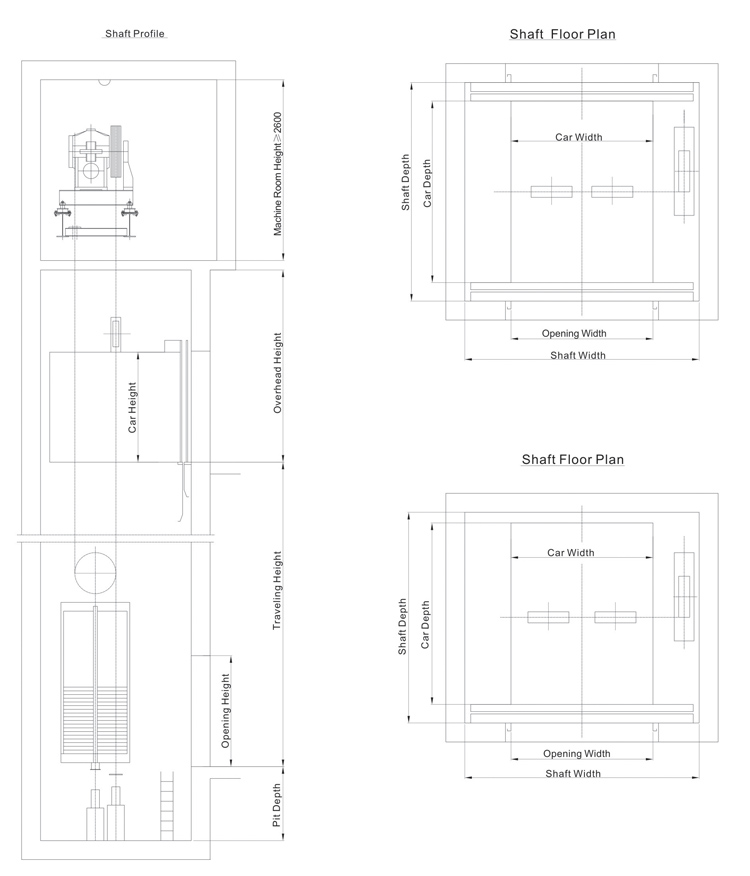

Car Size (mm) CW×CD×HK |
Opening Size(mm) PL×LH |
Opening Type | Shaft Size(mm) SW×SD |
Overhead Hight H2 mm |
Pit Depth H1 mm |
|
| MDFJ-C-1000/0.5 | 1000 | 0.5 | 1400×1600×2200 | 1400×2200 | Center opening Four Panels | 2450×2000 | 4200 | 1450 | |
| MDFJ-C-1000/0.5 | 1000 | 0.5 | 1400×1600×2200 | 1400×2200 | Four Panels Opposite Side | 2450×2070 | 4200 | 1450 | |
| MDFJ-C-2000/0.5 | 2000 | 0.5 | 1800×2300×2200 | 1800×2200 | Center opening Four Panels | 3000×2700 | 4200 | 1450 | |
| MDFJ-C-2000/0.5 | 2000 | 0.5 | 1800×2300×2200 | 1800×2200 | Four Panels Opposite Side | 3000×2770 | 4200 | 1450 | |
| MDFJ-C-3000/0.5 | 3000 | 0.5 | 2200×2600×2200 | 2200×2200 | Center opening Four Panels | 3600×3000 | 4200 | 1450 | |
| MDFJ-C-3000/0.5 | 3000 | 0.5 | 2200×2600×2200 | 2200×2200 | Four Panels Opposite Side | 3600×3070 | 4200 | 1450 | |
| MDFJ-C-4000/0.5 | 4000 | 0.5 | 2400×2900×2200 | 2400×2200 | Center opening Four Panels | 3800×3370 | 4200 | 1450 | |
| MDFJ-C-4000/0.5 | 4000 | 0.5 | 2400×2900×2200 | 2400×2200 | Four Panels Opposite Side | 3800×3370 | 4200 | 1450 | |
| MDFJ-C-5000/0.5 | 5000 | 0.5 | 2500×3500×2200 | 2400×2200 | Center opening Four Panels | 4000×4000 | 4200 | 1450 | |
| MDFJ-C-5000/0.5 | 5000 | 0.5 | 2500×3500×2200 | 2400×2200 | Four Panels Opposite Side | 4000×3970 | 4200 | 1450 | |
