Product Description
(Click on the download specific document)

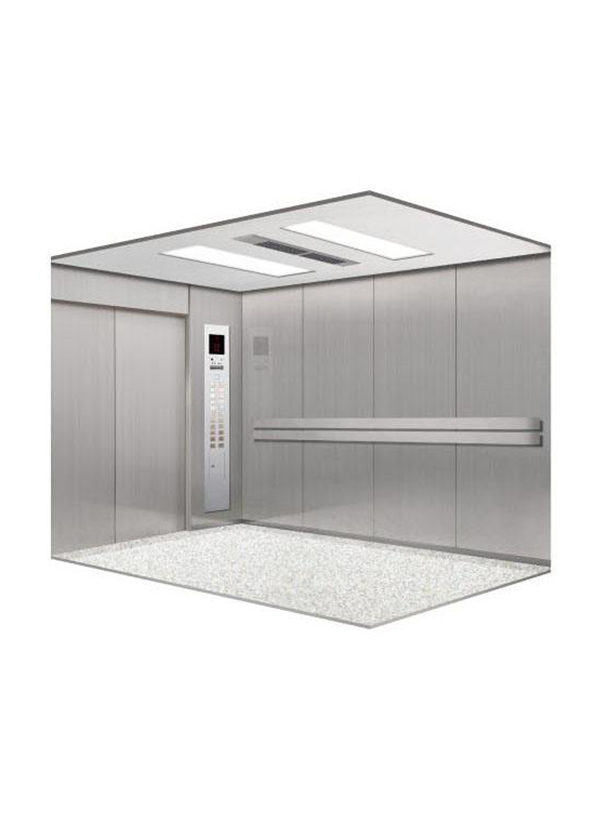

MODERN FUJI medical elevator series, designed according to the specific requirements of the hospital medical treatment units such as the medical elevator, meet the needs of the medical institution for special use, high stability, safety and reliability.
Product Specification
| Model | Load Kg |
Speed m/s |

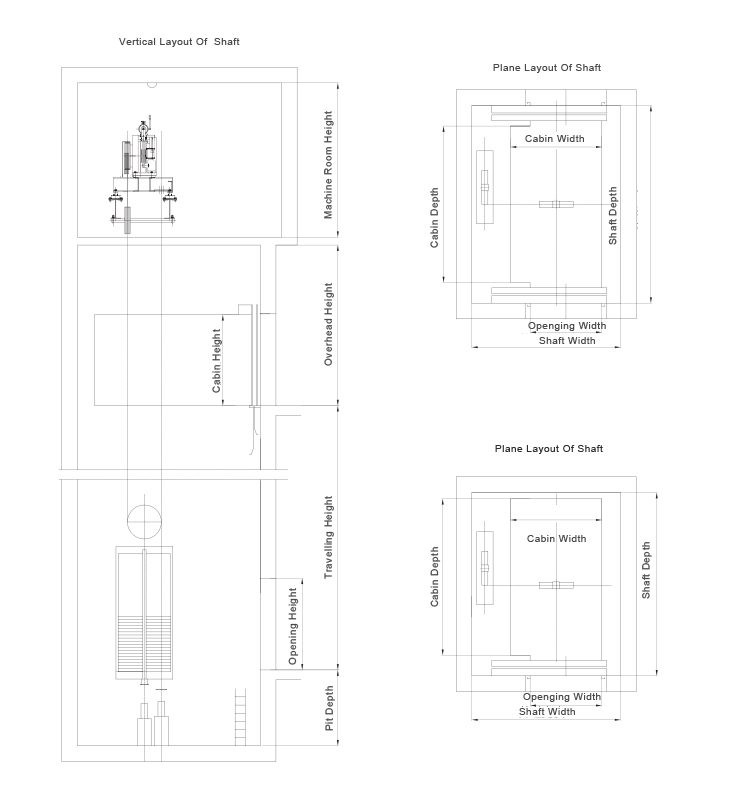

Pers | Car Size (mm) CW×CD×HK |
Opening Size(mm) PL×LH |
Shaft Size(mm) SW×SD |
Machine Room Size(mm) W×D |
Overhead Hight H2 mm |
Pit Depth H1 mm |
Travelling Height H mm |
| MDFJ-HS-1000/1.0 | 1000 | 1 | 13 | 1100×2100×2400 | 900×2100 | 2100×2500 | 2100×2500 | 4300 | 1500 | 50 |
| MDFJ-HS-1000/1.5 | 1000 | 1.5 | 13 | 1100×2100×2400 | 900×2100 | 2100×2500 | 2100×2500 | 4400 | 1500 | 75 |
| MDFJ-HS-1000/1.75 | 1000 | 1.75 | 13 | 1100×2100×2400 | 900×2100 | 2100×2500 | 2100×2500 | 4400 | 1500 | 85 |
| MDFJ-HS-1600/1.0 | 1600 | 1 | 21 | 1400×2400×2400 | 1100×2100 | 2300×2850 | 2300×2850 | 4300 | 1500 | 50 |
| MDFJ-HS-1600/1.5 | 1600 | 1.5 | 21 | 1400×2400×2400 | 1100×2100 | 2300×2850 | 2300×2850 | 4500 | 1500 | 75 |
| MDFJ-HS-1600/1.75 | 1600 | 1.75 | 21 | 1400×2400×2400 | 1100×2100 | 2300×2850 | 2300×2850 | 4500 | 1500 | 85 |
| MDFJ-HS-2000/1.0 | 2000 | 1 | 26 | 1600×2600×2400 | 1200×2100 | 2500×3050 | 2500×3050 | 4300 | 1500 | 50 |
